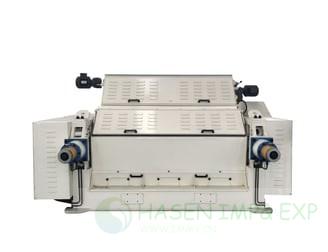

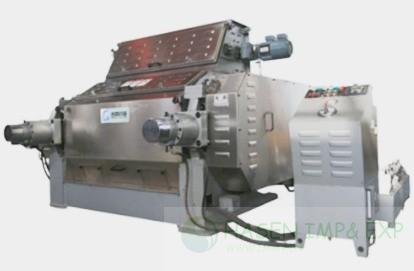

OAT FLAKE MACHINE

Oat flakes machine introduction

Oat flakes machine refers to the oat flakes processing plant which includes the following procedures:

Naked oats→cleaning→hulling→washing→spin-drying→thermal treatment of enzyme deactivation → cutting→ steaming→ flaking→ drying→ cooling→ packaging→ finished products

Its core equipment is oat flakes machine, which adopts totally enclosed safety protection. Its tooth roller design has the reasonable inner tooth-reverse form. It has fine workmanship, high yield, reliable performance and can produce qualified oat flakes.

Oat flakes machine working principle

First, the naked oats are processed by cleaning and steam softening. Then the material passes the feeding device of the oat flakes machine, and is sent

 continuously and evenly to the place between the two rollers which have certain interval and pressure.

Next, the oats are rolled into flakes according to the technological requirements.

Then it has a centralized processing by scraper device and enters the next section. If there has foreign hard matter mixing into the material and entering

 between the two rollers, then the hard matter will force the two rollers to be affected by a reactive force.

It struts the tooth rollers forcibly by hydraulic system (or spring effect) so as to make the tooth roller, shaft block and bolt have effective protection. After the

 hard matter passing, the tooth rollers recover to the normal working station automatically.

Working process

 1. Cleaning: oat has the similar cleaning process with wheat. The cleaning method is based on the granular size and gravity difference. We can get net oats after

 several processes of cleaning. The equipments for cleaning are: precleaning machine, vibrating screen, peeling machine, de-ironing separator, rotary screen,

 specific gravity sieve.

2. Peeling and whitening: its goal is to whiten and remove dust. It just needs gentle friction to remove oat fur and skin.

3. Cleaning and spin-drying: peeling, cleaning and then spin-drying.

4. Thermal treatment of enzyme deactivation: without thermal treatment of enzyme deactivation, oats fat will be oxidized in processing and affects products

 quality and shelf life. This method can deactivate enzyme, make oat starch burnt and increase baking taste. We use infrared ray or far-infrared heating

 equipment for this method. After this processing, oats should enter into the next section or should be forced cooling in time to prevent oat grease oxidation of

 overheating.

5. Cutting:cutting oats into 1/2- 1/3 granules by drum granulator. The oats flakes after cutting can keep unanimous and are easily laminated into thin flakes

 without powder.

6. Steaming: furtherly deactivating enzyme and sterilizing. Making starch become instant food, and making oats smoothed and softened for flaking. We use

 retroflex cooking machine for steaming.

7. Flaking:flaking by double roller flakes machine and keeping the flakes thickness for about 0.5mm. The roller diameter of the flakes machine should be 200mm.

8. Drying and cooling: drying and making the moisture reduce to 10% below for easy storage. Fluid bed dryer is the ideal drying equipment. Then it needs

 cooling to normal temperature after drying.

9. Packaging: we usually adopt material with good gas tightness, such as aluminium film, polypropylene bag and polyester bag. Besides, oat flakes are instant

 food which has higher sanitary requirement and needs sterile production system

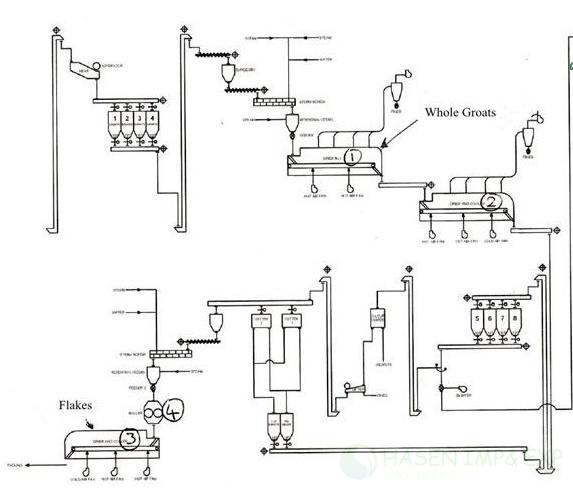

WORKING DIAGRAM OF OAT FLAKE MACHINE LINE

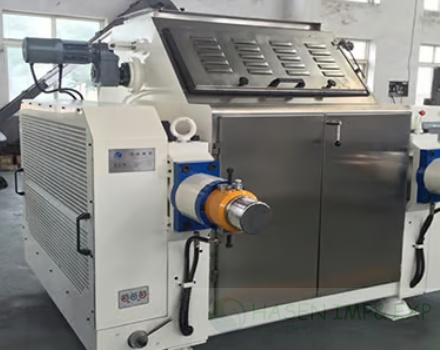

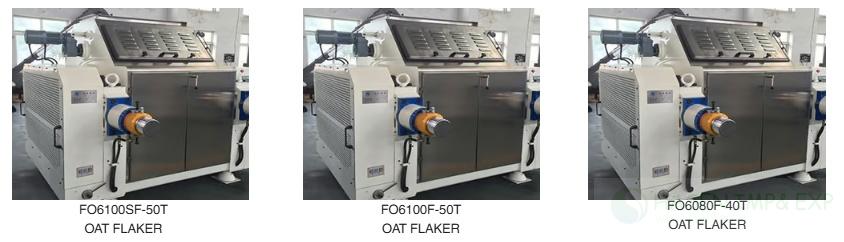

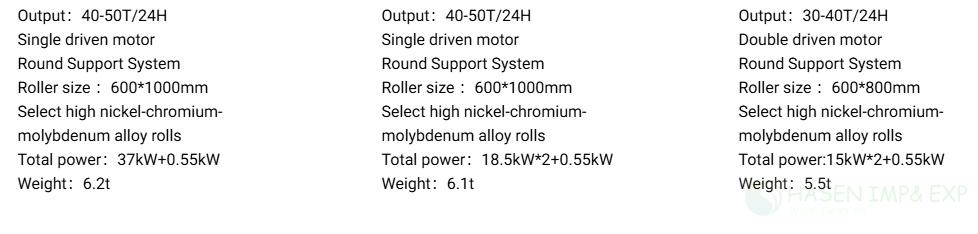

Model of equipment：FO6100SF

Motor power：37kw

Roller size ：600*1000mm

Embryo thickness：0.3～0.45mm(adjustable)

Weight：6.2T

Equipment size ：2100×2000×1730mm

Random accessories：Main body×1；Motor×1；Motor slide×2；

transmission belt×2；Stainless steel feed hoppers ×1；manual×1
