Cotton Seeds Sheller

Cotton Seeds Sheller.The machine has strong adaptability and can separate and crush cottonseed, soybean, sunflower seeds and peanuts, especially for shelling and separating with cottonseed. The process route is simplified, the floor space is small, and the whole kernel rate is high. , kernel contains less shells, reduces oil loss, increases equipment handling, and reduces equipment wear. It is a key pretreatment equipment in the oil industry. www.immy.cn / www.immyhitech.com

COTTON SEEDS DEHULLER(SHELLER)/CRACKER

Cotton Seeds/Sunflower seeds Sheller//Dehuller/Cracker with New design tooth roller cottonseeds sheller(dehuller) with ISO Approved.

www.immy.cn / www.immyhitech.com


When it comes to the preparation of oilseeds like cotton seeds, soybeans, rapeseed, sunflower seeds or corn,We need reliable processes with efficiency machines that turn raw materials into profitability.

Withour machine, you have a partner that can offer you both: sophisticated process know-how and modern technologies – all from a single source and customized to meet your individual business needs.

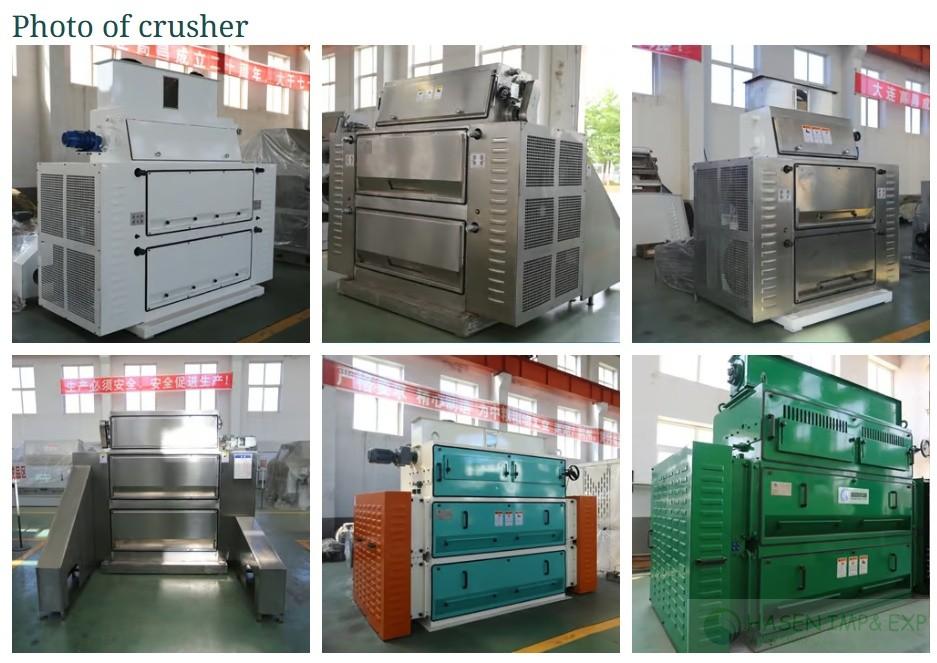

33 CRUSHER DEHULLER.jpg

Cotton Seeds/Sunflower seeds Sheller//Dehuller/Cracker passes the upper and lower pairs of relatively rotating tooth roller, and material like cottonseed shell falls under the action of gravity to the sheller roller. After the speed difference of the high speed rotating roller, after two consecutive extrusions and shears cutting and stripping, the shell is broken, and the inner shell of the shell is fully exposed for the purpose of shelling.

Cotton Seeds/Sunflower seeds Sheller//Dehuller/Cracker The machine has strong adaptability and can separate and crush cottonseed, soybean, sunflower seeds and peanuts, especially for shelling and separating with cottonseed. The process route is simplified, the floor space is small, and the whole kernel rate is high.kernel contains less shells, reduces oil loss, increases equipment handling, and reduces equipment wear. It is a key pretreatment equipment in the oil industry. www.immy.cn /

www.immyhitech.com

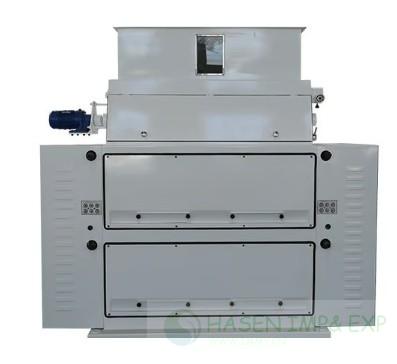

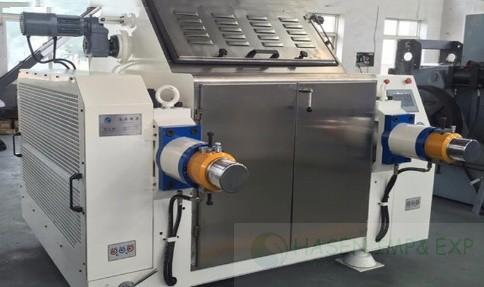

Double Pair Tooth Roller Sheller/Cracker/ Dehuller Cotton Seeds Dehuller Machine adopts single motor drive, square structure bearing seat, and it is convenient to realize synchronous adjustment of roller gap; it has independent intellectual property rights. (Patent No.: ZL201220182528.1)


1. Technical features
1) It is processed by special tooth roller, with high output and good shelling effect;
2) Centrifugally cast alloy tooth roller with high hardness and toughness and long service life.
3) Humanized design, operability and ease of use;
4) Adjustable roller gap and anti-collision function on the roller to ensure safe running of the roller;
5) Many functions, stable and reliable performance;
6) Simple structure, centralized lubrication, convenient maintenance and maintenance;

7) Fully enclosed protection with safety warning sign.

2.Technical parameters

Model	Capacity (T/24h)	Power (Kw)	Hulling rate %	Power degree %	Outside dimensions (mm)	Weight (T)
*HS25100**	120~150	15*2+0.55	≥99	≤5	1900×780×1910	~3
*HS25125**	160~180	18.5*2+0.55	≥99	≤5	2200×780×1910	~3.5
*HS30100**	160~190	18.5*2+0.55	≥99	≤5	1950×900×2130	~4.3
*HS35100**	150~180	30+0.55	≥99	≤5	1994×1378×2208	~6
*HS35150**	260~300	55+0.75	≥99	≤5	2494×1378×2208	~8
*HS35190**	500~550	90+1.1	≥99	≤5	2894×1378×2208	~10
*HS40100**	180~220	18.5*2+0.75	≥99	≤5	2050×1200×2310	~6
*HS40125**	220~260	22*2+0.75	≥99	≤5	2300×1200×2310	~7
*HS40150**	260~300	30*2+0.75	≥99	≤5	2550×1200×2310	~8
