Corn flaking macchine

Corn Flaking Mills

Corn Flaking Mills offer turnkey solutions with processing capacities ranging from 1 to 500 tons per day for oat, corn, barkey, sorghum, black rice, quanioa etc.  www.immy.cn / www.immyhitech.com

Flaking Mills offer turnkey solutions with processing capacities ranging from 1 to 500 tons per day for oat, corn, barkey, sorghum, black rice, quanioa etc.

www.immy.cn  / www.immyhitech.com

Flaking Mills from 25TPD to 500 TPD

F8150H-300T                                                     F8100-150T
Flaking mill                                                                Flaking mill

Output:280-300T/24H                            Output : 100-150t/24h
Double driven motor                            Double driven motor
Square Support System                          Square Support System
Roller size :800*1500MM                        Roller size :800*1500MM
China's First Heavy Roll                       China's First Heavy Roll
Total power: 55kW*2+0.55kW+1.5kW               Total power: 55kW*2+0.55kW+1.5kW
weight 11.5T                                   weight 7.5T
one year warranty                              one year warranty

    FS6080-50T                                                         FS4080-25T

    Flaking mill                                                          Flaking mill

Output : 50-80t/24h                                                  Output : 25-30t/24h

Double driven motor                                                Double driven motor

Round Support System                                            Round Support System

Roller size :600*800mm                                            Roller size :600*800mm

Select high nickel-chromium-molybdenum            Select high nickel-chromium-molybdenum

alloy rolls                                                                  alloy rolls

Total power : 18.5kW*2+0.55kW                              Total power 11kW*2+0.55kW

Weight : 5t                                                                 Weight :2.5t

one year warranty                                                     one year warranty

Model indication：F=FLaking； dia of roller： 8=800mm； length of roller：150=1500mm；
single driven motor S=Single；high configuration H=High

Basic configuration ：whole closed structure. Both side are with heat dissipation network. round bearing base .front and back door plate can be

 opend , easy to be cleaned .Both sides of bottom have material receiving port ,easy to observe the effect of material.


Roller：The high Ni Cr Mo alloy roll is poured by German centrifuge ,the hard layer is uniform. Rolls are dynamically balanced

Pulley： The imported belt tightening process is adopted for the belt pulley

Hydraulic system ：the high-efficiency and energy-saving intermittent hydraulic pump station ensures the stable operation of the equipment.

(The spring flaking mill does not includ this item)

Equipment base ：the base is welded steel ,which is quenched and tempered to eliminate internal stress and ensure that the base

is not deformed

Leak proof device：leakage proof material by pinnacle baffle

Scraper system：Easy to clean up the materils attached to the roller .The blade can be removed and adjusted .

Tight-roll function:hydraulic tighten roller  （suit for hydraulic flaker ）；

Spring tighten roller （suit for spring flaker ）

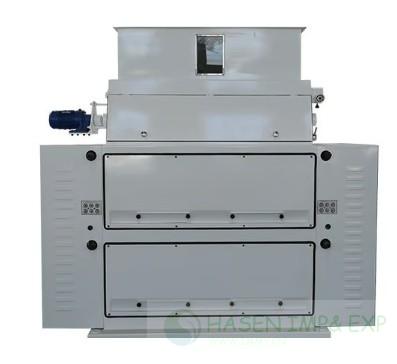

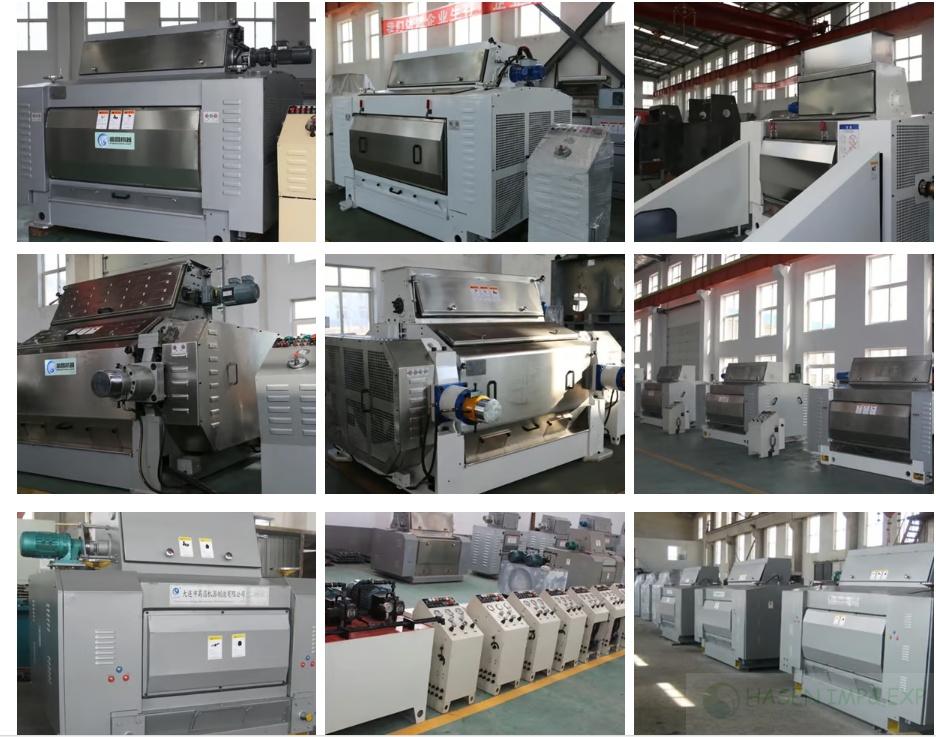

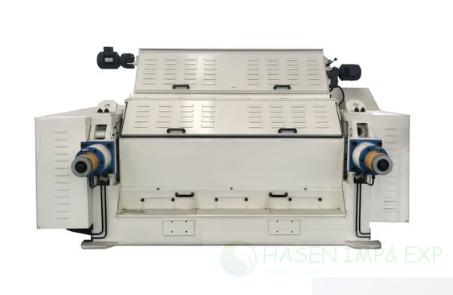

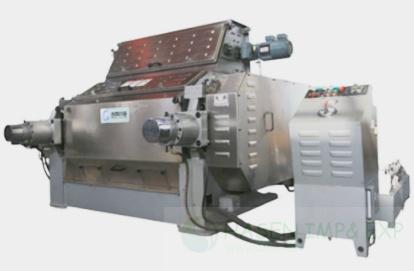

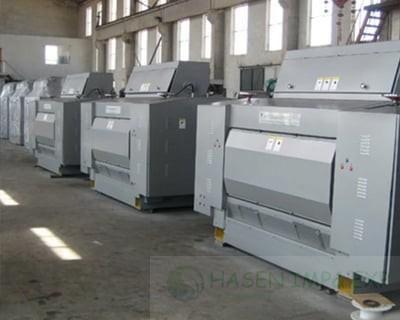

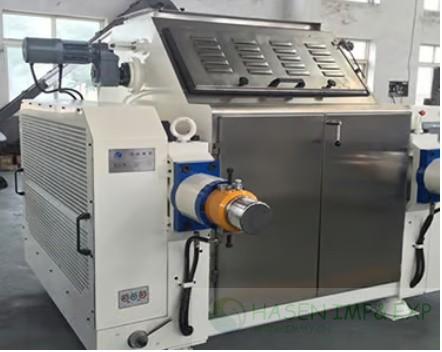

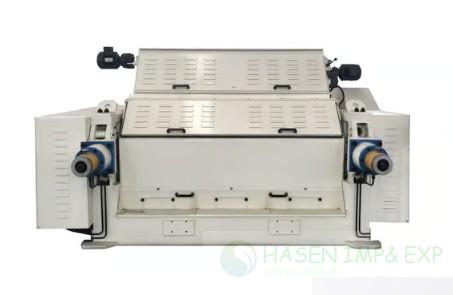

PICTURE OF FLAKING MILL

https://youtu.be/2ULVuHEhTws

https://youtu.be/FGysgqYqreo
