Intensive Wheat Scourer

INTENSIVE WHEAT SCOURER

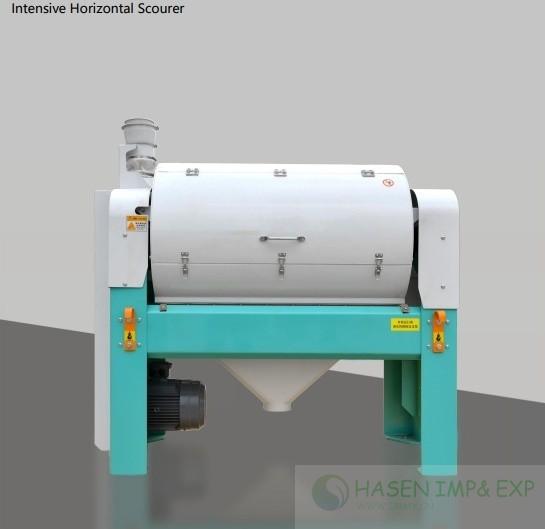

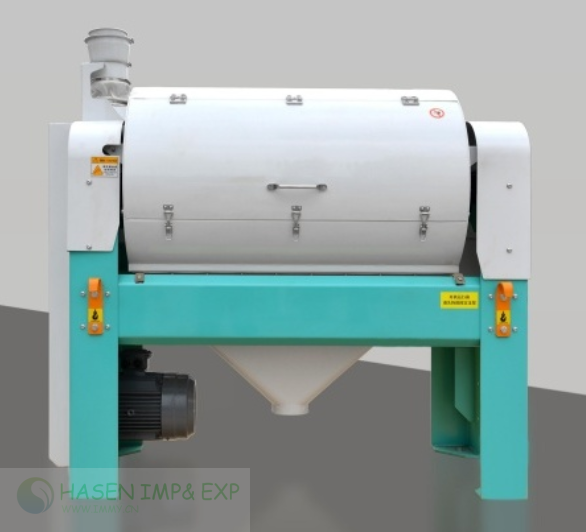

Intensive Wheat Scourer There are two models of Intensive Wheat Scourer,  30/60 friction

malting machine and 45/80 friction malting machine.

www.immy.cn / www.immyhitech.com

INTENSIVE WHEAT SCOURER

INTENSIVE WHEAT SCOURER type intensive wheat scourer has a number of models; Can be selected

from the capacity of 5t/h to 20t/h.

Depending on the process and capacity, you can flexibly choose different models.

INTENSIVE WHEAT SCOURER

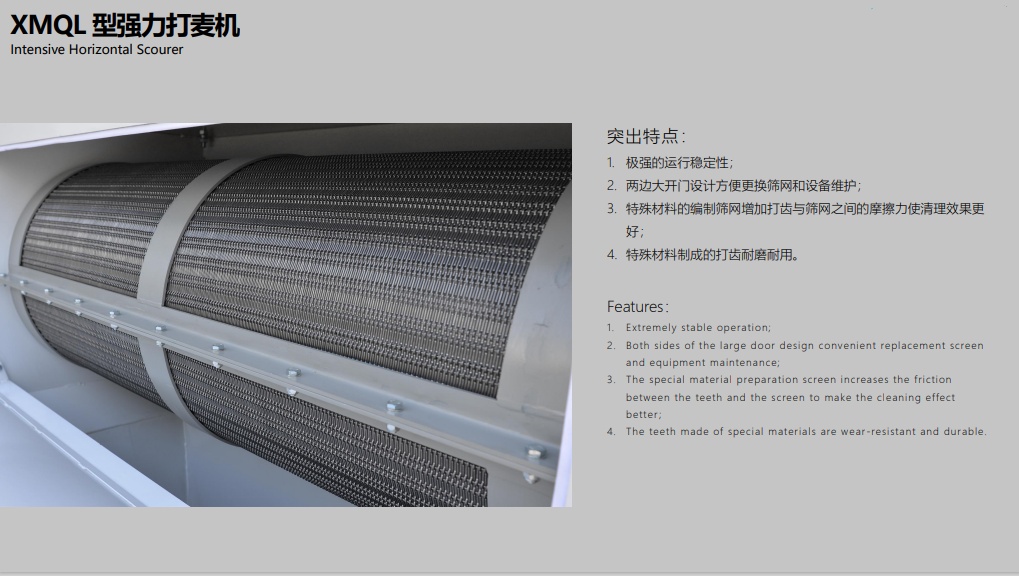

Features

1. Strong stability during operation;

2. The design of large doors on both sides facilitates the replacement of sifters and equipment maintenance;

3. The preparation of the special material screen increases the friction between the teeth and the screen to make the cleaning effect better;

4. The teeth made of special materials are wear

resistant and durable.

PECULIARITY

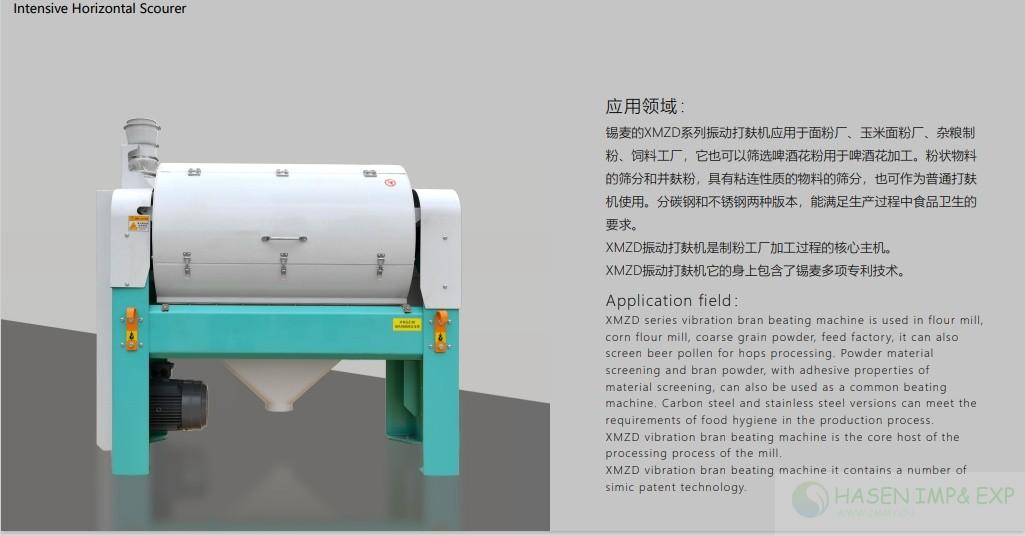

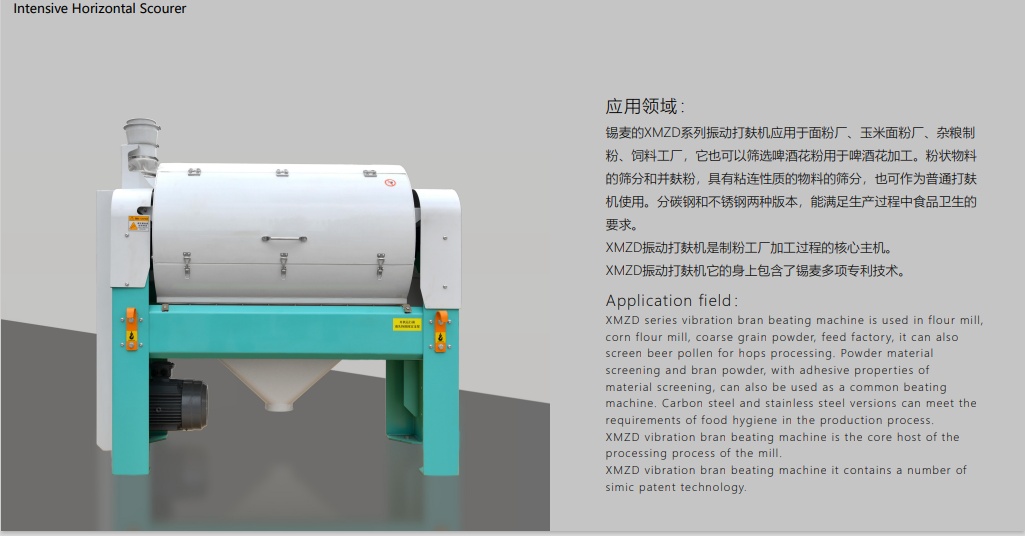

It is used to process many different types of grains: such as oats, wheat, rye, barley, and other grains;

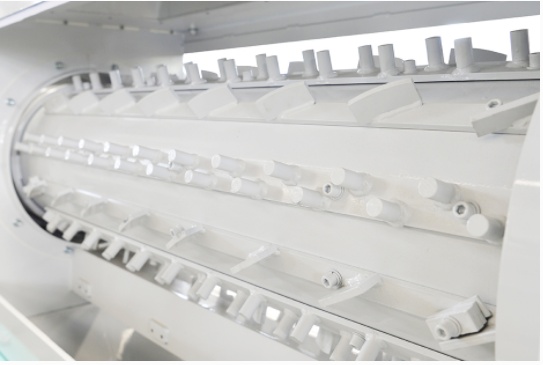

The rotor stator is equipped with a friction plate of special material, and the material enters the body in the groove of the friction plate, the cone head plate, and the screen of the special material rubs against each other to produce a good cleaning effect;

The machine is used in conjunction with the color sorter and winnowing equipment, which can reduce the mold and bacteria of grains;

It removes impurities such as dust, sand and dirt that stick to the grain;

Food safety: Greatly improving the hygiene of the product by removing impurities, the machine removes and reduces the number of bacteria and fungi as well as insects and insect residues;

Compact design: The compact design of the marshing machine makes it ideal for integration into existing plants.

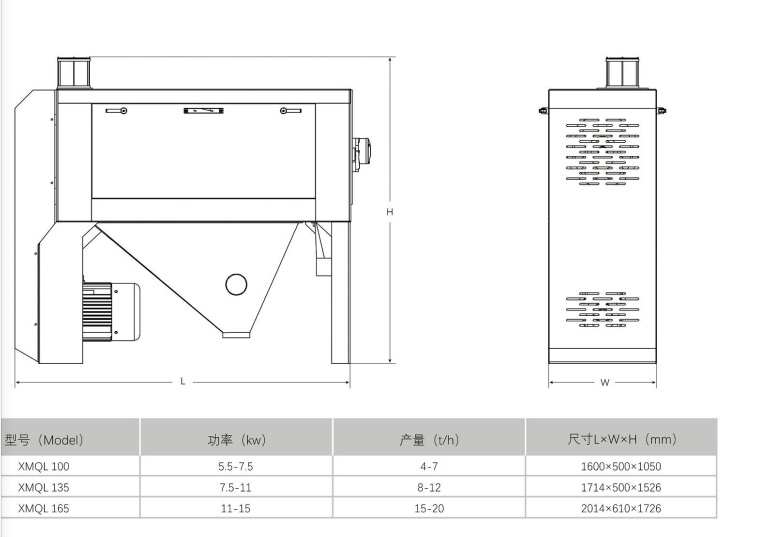

TECHNICAL SPECIFICATION:

We are leading Integrated flour mill engineering equipment manufacture in China, Inquiry

us if you need high standard Full Auto Flour Mill Line from 100-5000 tons per a day.

FAQ:

How dose Pulses Processing Plant works?

Pulses processing machinery

WUXI HASEN Industries designs turnkey Pulses processing plants for handling pulses like chickpeas, lentils, peas, and beans, utilizing high-efficiency pulse processing equipment for the production of premium-quality pulses flour.

We offer complete pulses processing plants, covering everything from silo loading and cleaning right through to milling and final packaging of the flour or granulated product. Our primary goal is to achieve high-quality products with maximum energy efficiency and complete process automation.

Pulse cleaning: separation, dehulling, and hygiene

The pulse cleaning phase aims to remove impurities, stones, soil residue, and damaged seeds, ensuring a perfectly clean product ready for transformation.

This stage involves separators and grain aspirators for foreign material removal, brushes for surface cleaning, and debranners  to remove the outer skin of the pulse when necessary, for example, in the production of dehulled chickpea flour.

Today, these systems incorporate innovations such as closed-loop technologies that reduce dust emissions, ensuring a clean and safe working environment.

pulses milling: from whole grain to flour

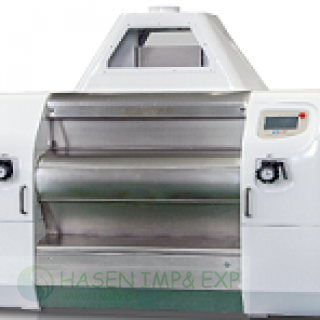

Following cleaning and optional dehulling, the milling process transforms the pulses into flours, semi-finished products, or granules intended for food-grade or industrial use. WUXI HASEN’s dedicated industrial pulse milling equipment, such as the Leonardo Edge roller mill, the Cimabue impact detacher, and the hammer mill, ensures effective processing that can be customized based on the type of pulses.

Our Flexy Mill technology allows easy adjustment of the speed, pressure, and direction of the rolls according to the hardness of the pulse. This system allows producers to achieve various particle sizes, ranging from very fine flours to coarse cracked products, with maximum control over product quality.

In parallel, the WUXI HASEN Multi device Interface enables simple and intuitive management of the milling parameters through dedicated software with a digital interface. Sensors and automatons monitor flow rate, milling level, selected milling settings, and energy consumption in real-time, minimizing human error and optimizing productivity.

Pulse discharge and storage: logistics and control

WUXI HASEN’s pulse discharge and storage systems guarantee a continuous and secure flow, thanks to an optimized facility layout and systems designed for simplified maintenance.

Pulses are unloaded using automatic weighing scales and transported by customisable and modular screw conveyors and vertical bucket elevators, which are designed to protect against contamination and facilitate quick batch changes.

Finally, the pulses are stored in silos engineered for precise humidity and temperature control.

Packaging: precision and automation for the finished product

WUXI HASEN automated pulse packaging systems integrate digital control and automation to ensure precision, traceability, and energy savings throughout the entire production line.

We provide integrated systems that include electronic dosers, automatic packaging machines, and pulses flour bagging stations capable of handling different product types, from whole pulses to fine flours.

For pulses, packaging often requires barrier materials or protective atmospheres to prevent oxidation and preserve the valuable protein content. Unlike rice, which is packaged as a dry and stable product, pulses may require more stringent freshness controls.

Thanks to these integrated technologies, WUXI HASEN Industries offers customized, efficient, and cutting-edge pulse processing plants, supporting food companies with every production requirement.
