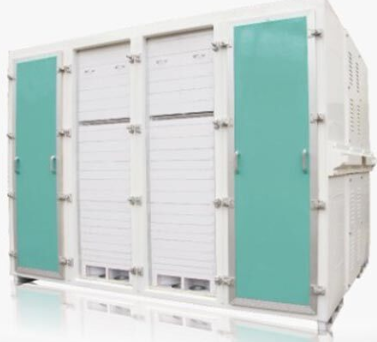

High Plansifter

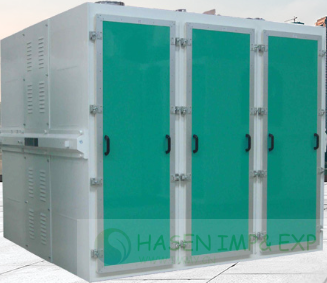

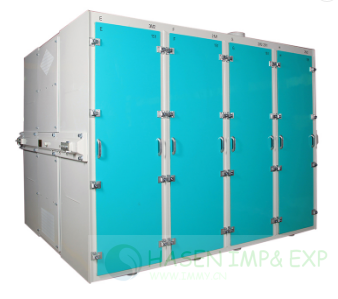

8-Compartment High Square Sifter

Appication:

FSFG plansifter is mainly applied in sifting and grading for system material during milling process in milling industry,and also used in other industries for granule materials.
Features:

1)Unique motor shaft sealing device ensures the flour not enter into the main equipment;
2)It is equipped with a resilient support of the balance iron under the main shaft;
3)Using SKF self-aligning roller bearings for drive shaft,to ensure highly concentric precise.
4)The top of sieve is adopted adjustment clamping mechanism;it has simple,convenient,and easy operation characteristics;
5)Using the new sieve box,the novel design patterns of sieve box increase the sieve area and capacity;
6)Sieve door and the channel sealing strict,to ensure no powder fleeing and powder leakage;

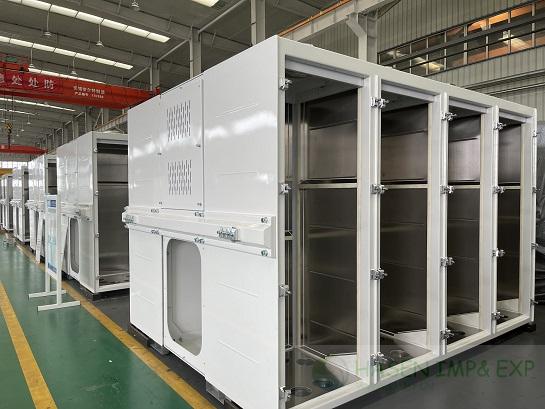

7)Plansifter framework uses automobile frames steel bending,welding,strong rigidity,and good fatigue resistance
8)The completely enclosed structure is adopted for the machine with the drive motor inside it,and has attractive appearance.

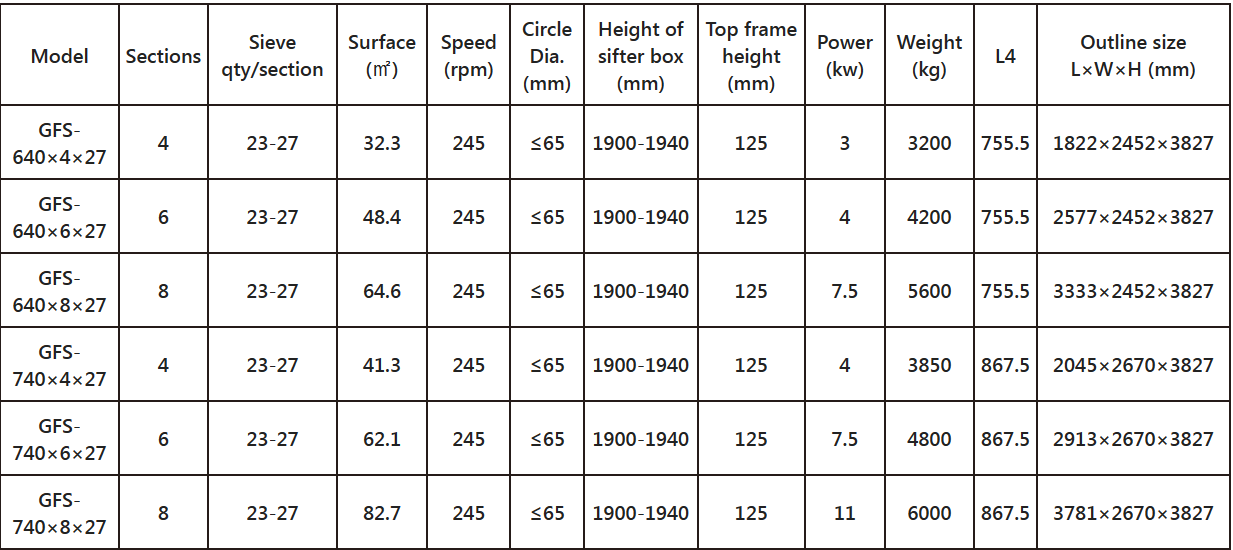

FSFG Main Technical Parameter:
FSFG640 main technical parameter

High Plansifter is one of the main grain oil equipment special in flour mill industry, utilized to classify intermediate products in accordance with their particle size at all milling stages and to separate out different flour types per quality required. www.immy.cn / www.immyhitech.com

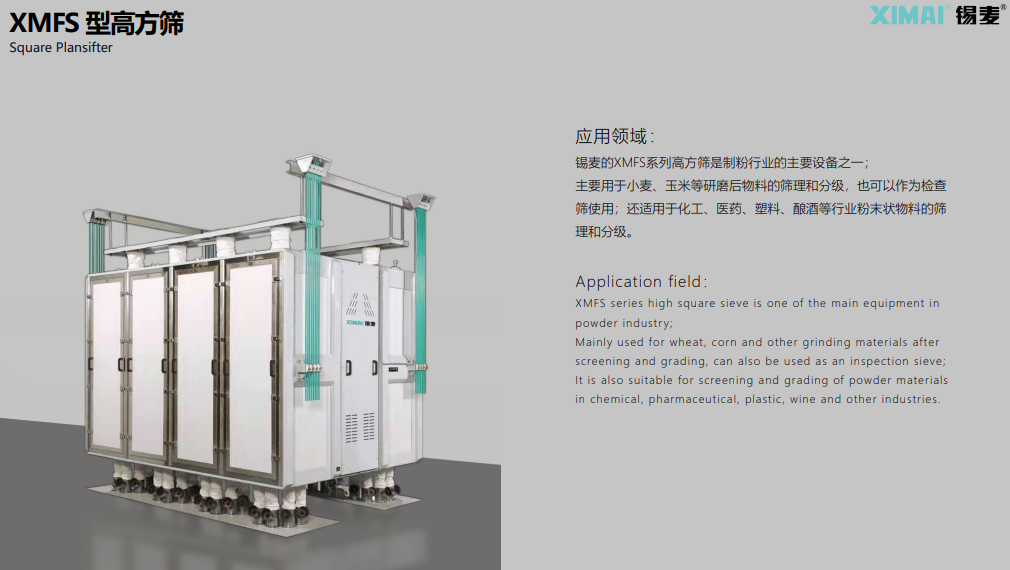

Application field:

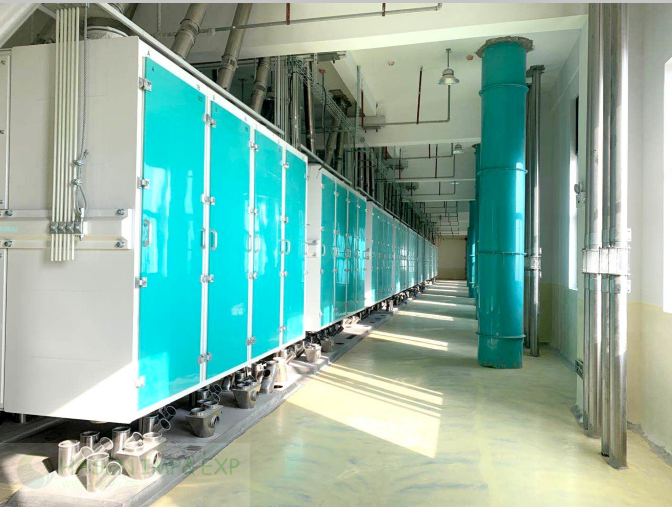

High Plansifter is one of the main equipment in Flour mill industry.

High Plansifter is utilized to classify intermediate products in accordance with their particle size at all milling stages and to

separate out different flour types per quality required.

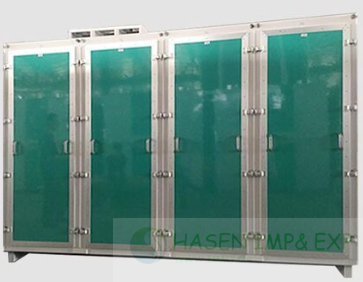

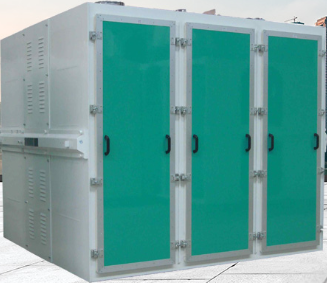

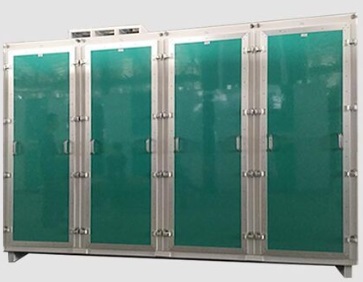

HIGH PLANSIFTER is divided into four cabinets and eight cabinets, and the sieve grid specifications are divided into 640mm and 740mm.

You can choose different models flexibly according to different technologies and production capacity.

Outer frames can be food grade polyurethane (PU) or wood with melamine;

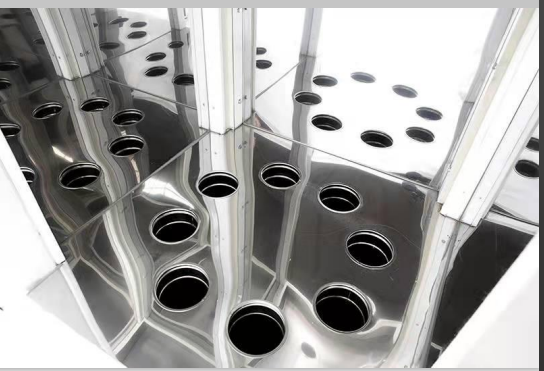

The parts in contact with materials, lined with food-grade stainless steel, meet food safety and hygiene standards.

While inner frames are aluminum (ALUM) for long service life.

The machine can also be used for the grading of different grain types such as rye, corn(maize) etc.

Mainly used for wheat, corn and other grinding materials after screening and grading, can also be used as an

 inspection sieve,is also suitable for screening and grading for  materials in chemical, pharmaceutical, plastic and wine Industries.

Personalized selection:

HIGH PLANSIFTER is divided into four and eight silos, sieve size is 640mm and 740mm

You can choose different models flexibly according to different process and capacity.

Machine completes with:

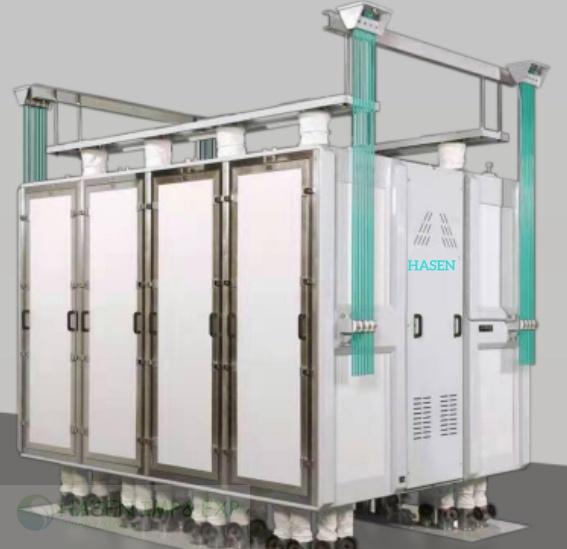

• Fiberglass hanging canes;

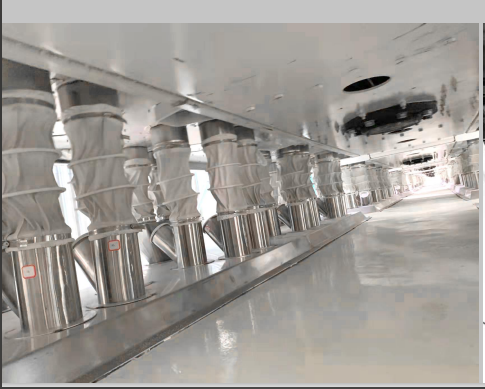

• Products inlet and outlet sleeves;

• Inlet and outlet boards with stronger suspensions;

• Inox steel or plastic material joints according to the flow sheet;

• Sieve cleaning pads products expellers
