Biomass Pellet Equipment

Biomass Pellet Equipment produces and supplies all core process equipment in the biomass field, and manufactured for the

production of biomass pellets, solid fuel molding, and waste pelletization. www.immy.cn / www.immyhitech.com

stand-alone device.

Performance:

·High -precision gear transmission

·transmission efficiency is as high as 99%

·production efficiency is higher

Application:

This pellet mill is suitable for granulating a variety of biomass raw materials and can also be used to granulate pure

grass powder for ruminant feed.

Biomass pellets are made by recycling waste and are a new type of environmentally friendly fuel, widely used in

residential heating equipment, power plants, boiler plants, etc. It has the characteristics of large heat generation,

 low ash content, low environmental pollution, and recyclability.

Biomass Pellet Equipment produces and supplies all core process equipment in the biomass field, and
Manufactured for the production of biomass pellets, solid fuel molding, and waste pelletization
stand-alone device.

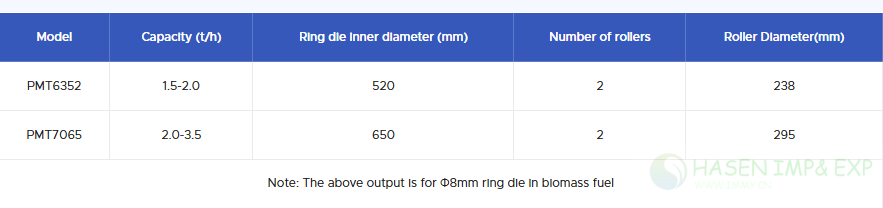

PMT series

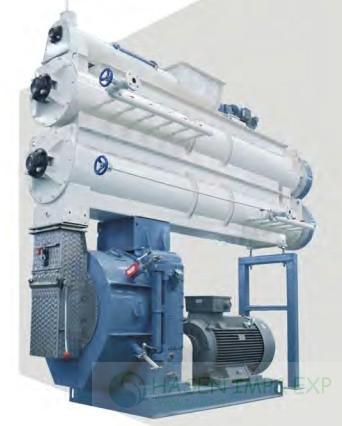

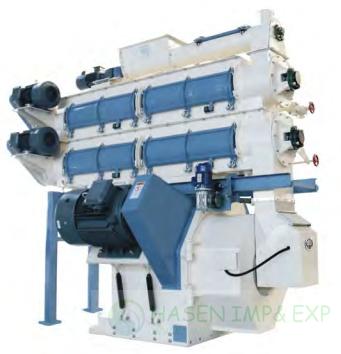

The PMT7065 granulator is suitable for biomass pellet manufacturers to produce biomass fuel,

The best choice for sustainable energy such as waste granulation. This model is equipped with a single motor.

 Two-stage reduction transmission system, wide linear speed adjustment range, reliable operation and long life.

The whole machine has high transmission efficiency and more energy-saving operation.

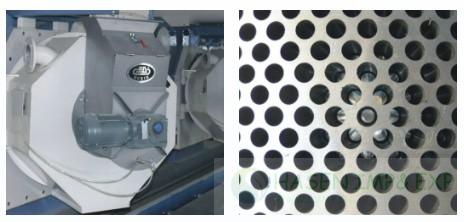

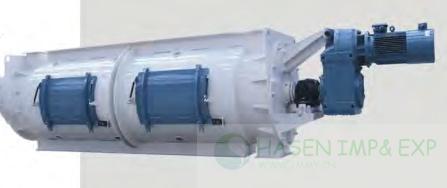

PMT7065 granulator feeder, modulator and hexagonal door adopt 304 made of stainless steel, with few

wearing parts, and the pressure roller interlocking system can be used conveniently and quickly.

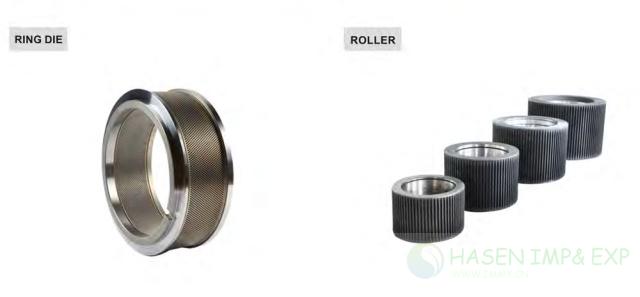

Adjust the gap between the pressure roller and the ring die.

The equipment is equipped with emergency pneumatic discharge bypass, overload protection safety pin,

ring die lifting device to meet user needs.

In addition, the PMT7065 granulator is also suitable for processing agricultural and forestry waste and household waste.

The best choice for garbage disposal, producing great environmental, social and economic benefits.
