Guide to TBLM and BLMF Series Pulse Jet Dust Collectors

Guide to TBLM & BLMF Series Pulse Jet Dust Collectors

In the industrial sectors of grain processing, feed milling, chemical engineering, and mining, operational efficiency is directly tied to air quality and material recovery.

As environmental regulations tighten globally and production costs rise, the demand for high-efficiency dust control is no longer just about compliance—it is about

profitability.

WUXI HASEN, a leading manufacturer based in China, has developed a reputation for robust engineering in the fields of pulse jet filters, cyclone separators, and

screening equipment. At the core of their product line are the TBLM and BLMF series dust collectors. These units are not just auxiliary equipment; they are strategic

assets designed to maximize yield while minimizing energy consumption and maintenance downtime.

Below is an in-depth technical sales research article detailing why the TBLM and BLMF series represent the gold standard for industrial dust management.

The Engineering Philosophy Behind WUXI HASEN

Unlike generic dust collectors that treat all particulate matter the same, WUXI HASEN’s TBLM/BLMF series are designed with a clear understanding of material

 characteristics. Whether handling explosive grain dust, abrasive feed particles, or chemical powders, these units bridge the gap between simple filtration and

advanced pneumatic conveying.

The series comes in two primary form factors:

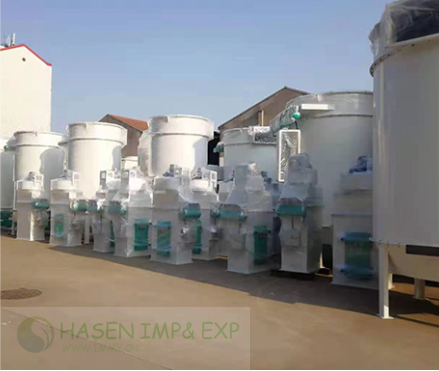

TBLM Series (Round Cylindrical Design): Preferred for applications requiring pressure resistance, high negative pressure, or when handling potentially explosive

dust (superior stress distribution).

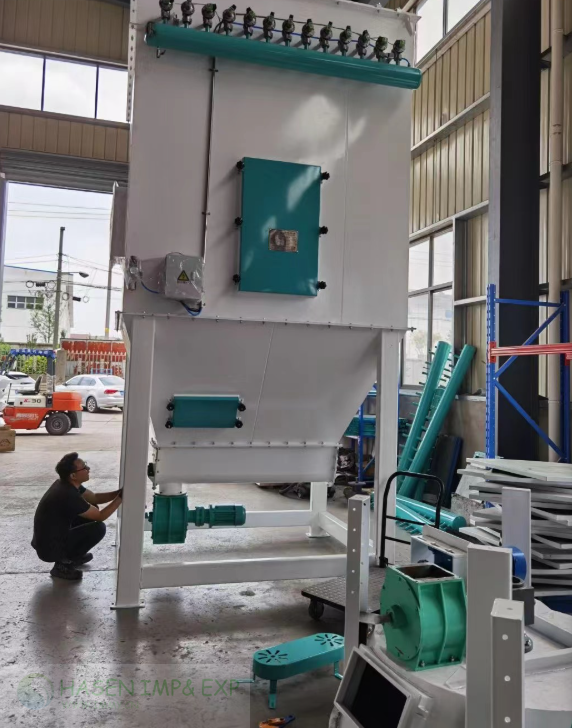

BLMF Series (Square/Facade Design): Optimized for space-saving, modular installation, and applications where uniform airflow distribution across the filter

 bags is critical.

Technical Deep Dive: Why the Pulse Jet System Matters

The defining feature of these collectors is the Low-Pressure Pulse Jet Cleaning Mechanism. Here is the science of how it works and why it provides a competitive edge.

The Filtration Cycle:

Dust-laden air enters the hopper. WUXI HASEN utilizes a tangential inlet design in the TBLM series. This creates a cyclonic effect within the hopper: heavy particulate

 and coarse dust lose momentum due to gravity and centrifugal force, falling directly into the discharge bin before ever reaching the filter bags. This "pre-separation"

 significantly reduces the dust load on the filters, extending bag life by up to 30%.

The Cleaning Cycle (Regeneration):

As fine dust accumulates on the filter bags, pressure drop increases. The HASEN control system triggers a high-pressure air pulse from the air reservoir.

Instant Reverse Jet: Compressed air is blasted backwards through the venturi tube at the top of each bag.

Controlled Deflagration: This pulse expands the filter bag rapidly (cracks the dust cake) and creates a shockwave that shakes off accumulated particulate into the hopper.

Low-Pressure Advantage: The system operates at lower pressures than traditional models, reducing wear on the solenoid valves and the air compressor, leading to

 lower operational costs.

Why Upgrade to WUXI HASEN TBLM/BLMF Series?

For professionals managing feed mills, rice mills, or food processing plants, the shift to WUXI HASEN equipment solves five critical operational bottlenecks:

1. Unmatched Recovery Rates (≥99.9% Efficiency)

Downstream losses are silent profit killers. The WUXI HASEN BLMF series achieves a filtration efficiency of ≥99.9% , capturing particulate matter as small as PM2.5.

This means valuable product ends up in your silo, not on your floor or up your stack.

2. Industrial Versatility

Feed Industry: Effectively collects lightweight chaff and hulls without clogging.

Food Processing: Stainless steel options available to prevent cross-contamination and rust.

Cement & Mining: Heavy-duty housing resists abrasive wear from mineral dust.

3. Structural Integrity & Safety

Safety is paramount in dust collection, particularly with combustible grain dust. The TBLM series features a round, explosion-resistant body, often equipped with

explosion venting panels. The structure utilizes mechanical bending and robotic welding, ensuring zero air leakage—a common fault in cheaper cabinets that

leads to energy waste.

4. Maintenance-Friendly Modular Design

Downtime is expensive. The BLMF series features a "quick-removal" roof and filter bag frame assemblies that do not require tools to access. Bag replacement can

 be performed entirely from the clean air side, protecting workers from exposure to collected dust. The bottom of the unit often features flat-bottom scraping plates

 or screw conveyors to eliminate material bridging in the hopper.

5. Customization and Integration

WUXI HASEN does not sell "off the shelf" problems. They customize:

Bag Materials: Polyester, Aramid (Nomex), or PTFE membranes depending on temperature and acidity.

Air Volume: Units range from small-scale 1,200 m³/h units to industrial 17,000 m³/h units.

Model Comparison: Selecting the Right Unit

When selecting between the TBLM (Round) and BLMF (Square), consider the footprint and layout:

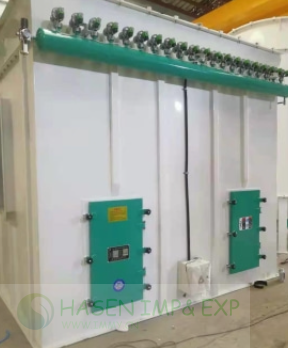

The BLMF Series (Square): Ideal for indoor installation or retrofitting into existing production lines. It offers a higher density of filter bags per square meter.

For instance, the BLMF-48 model packs 48 bags into a compact frame, handling up to 11,500 m³/h.

The TBLM Series (Round): Superior for high-negative-pressure systems and pneumatic conveying lines. The round body eliminates "dead corners" where dust

can accumulate, making it easier to clean and maintain airflow consistency.

WUXI HASEN Advantage：

Why source from WUXI HASEN via www.immyhitech.com?

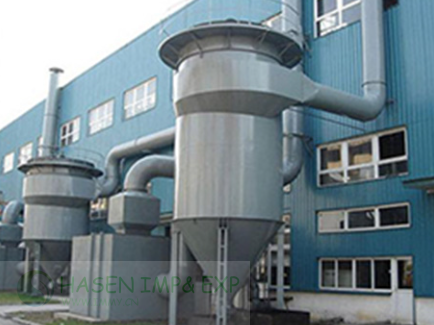

Unlike generalist manufacturers, HASEN focuses on the entire dust ecosystem. They design systems where the pulse jet filter works symbiotically with their

cyclone dust collectors (to drop heavy grit first) and their cleaning/screening equipment (to grade product post-collection). This holistic approach ensures that

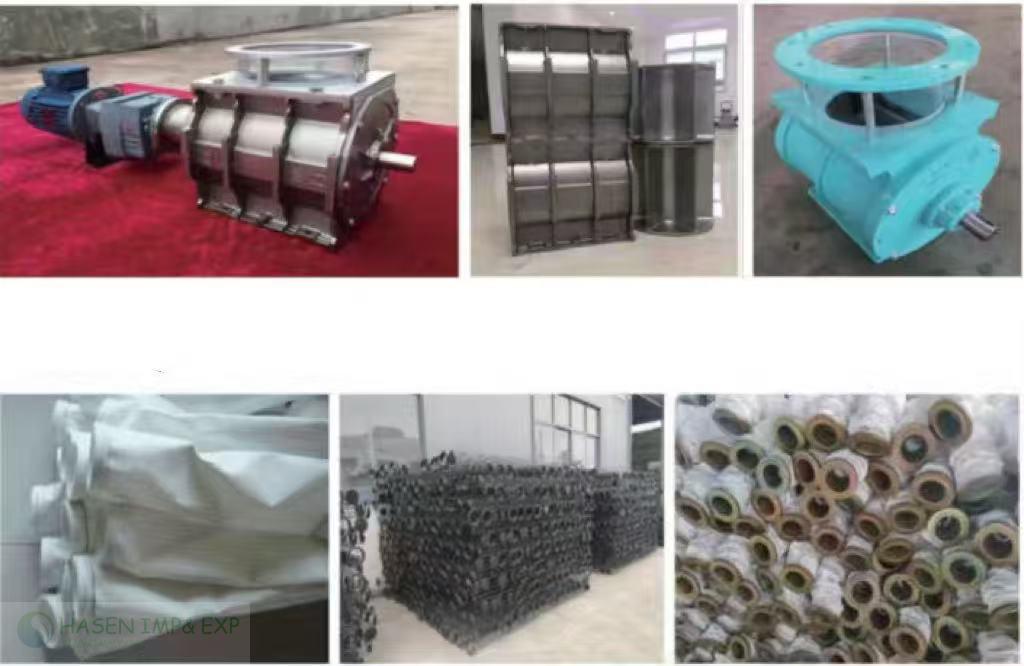

every component—from the fan to the rotary airlock—is perfectly matched for static pressure and air volume.

Invest in Clean Air, Recover Profits

The era of treating dust collection as a necessary evil is over. With WUXI HASEN’s TBLM and BLMF series, industrial clients gain a partner in efficiency. You achieve

lower energy bills (thanks to low-pressure pulse technology), less product waste (thanks to 99.9% efficiency), and fewer regulatory headaches.

If your current dust control system is driving up your energy bills or failing to capture valuable fines, it is time to upgrade to intelligent, high-velocity pulse jet technology.
